6-WAY DIGITALLY TUNED Diversity Antenna Distribution System [AD226-MB] (SUPPLIED WITH RF LINK CABLES - IN STOCK SOON)

RF filtering protects the receivers against interfering signal and unwanted dirty RF, maintains continuous RF reception in Diversity operations.

Digitally Tuned Semi-Board Band Antenna Distribution Module for sound bag, cart and trolley applications.

AD226-MB is a custom design 6-way Antenna and DC Distribution System for Diversity Receivers.

• Very wide band Digitally Tuned user selectable Band-Pass Filters
• One pair of antennae feeds up to six diversity receivers
• Digitally Tuned band-pass filtering and signal splitters
• Remote antenna powering
• 6 x Hirose dc outputs
• User-adjustable system gain
• Industry standard connectors

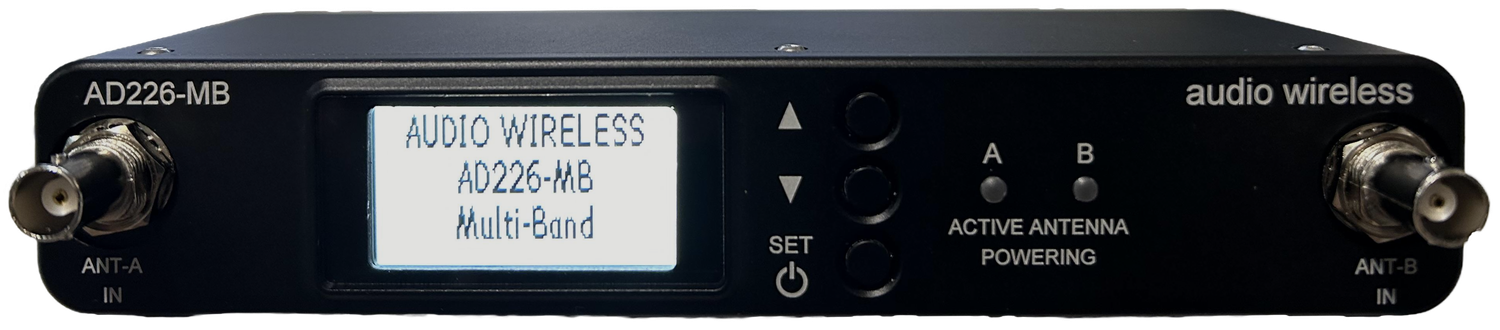

• Intuitive TFT display menu and LED indicators
• Single power source solution
• Master ON-OFF switch
• Continuous system Voltmeter
• Soft ON/OFF switch for each individual Remote Antenna powering
• Soft ON/OFF switch for each individual Hirose dc output

• CNC machined aluminum custom design, lightweight and rugged - fits neatly in any sound bag

The AD226-MB is a 2-IN and 2x6 OUT active antenna distribution system with in-built high selectivity, very low insertion loss band-pass filters. The AD226-MB eliminates multiple receiver antennas and provides a tidy sound bag solution with improved RF performance. Advanced filtering design cleans up dirty RF within the selected bandwidth before feeding into the Diversity Receivers this is very important in crowded radio frequency spectrum to protect the receivers from unwanted RF signals.

The AD226-MB is a custom designed Antenna Distribution (AD) system which offers the solution to antenna and dc power distribution requirements for portable sound bag applications. Designed for where the weight and size matters without sacrificing on performance.

The antenna inputs are BNC connectors which enables use of standard low loss RF coaxial extension cables, and the outputs are 2x6 mini-RF SMA connectors feeding the diversity receivers.

In applications when remote antenna powering is needed, the AD offers switchable Active Antenna Powering with RED LEDs indicating power ON/OFF status, the Active Antenna Powering can be turned ON/OFF through the high visibility large display menu.

The AD226-MB has a very high input signal handling capacity with very low noise figure and offers an outstanding inter-modulation performance when compared to other low power devices available.

The tuning bandwidth is custom tuned with a semi broadband response to suit varying applications; the system RF gain is user adjustable in 1dB steps between +6dB to -10dB, the AD226-MB is compatible with full-digital, digital-hybrid and analogue radio microphone receivers available in the industry.

The AD is externally powered between 10-18Vdc, the dc input connector is an industry standard 4-pin Hirose and there are 4xHirose dc output connectors available for powering auxiliary equipment. Each dc output port can be individually turned ON/OFF through the display menu. The inbuilt Voltmeter continuously displays dc input voltage status.

Audio Wireless Antenna Distribution (AD) and Antenna Combiner (AC) and digitally tuned systems are now first choice among freelance sound engineers, hiring companies as well as major broadcasters for all wireless microphone applications.

RF Distribution Section
Frequency Range	470 to 832MHz Digitally Tuned
Input Impedance	50 Ω
Output Impedance	50 Ω
Gain (each output)	+6 dB to -10dB, user-adjustable
Current Consumption	180mA @12.0V dc

UHF Bandpass Type
Bandwidth	362MHz Digitally Tuned, user selectable 20 filters
OIP3	> +41dBm
Port to port isolation	> 20dB (min.)
Noise figure	< 3 dB

Connections
RF Inputs	2x50 Ω Standard BNC Sockets
RF outputs	12x50 Ω mini UHF SMA sockets
DC Power IN	4-pin Hirose (compatible) sockets individually fused and protected against reverse polarity
DC Power OUT	6x4-pin Hirose (compatible) sockets individually fused and protected against reverse polarity
Main ON/OFF Switch	Master switch – SET push button doubles for ON/OFF and SET
DC IN pinouts	Pin1+2(-ve) and Pin4+3(+ve)
DC OUT pinouts	Pin1(-ve) and Pin4(+ve)

Powering
Operating Voltage Range	10-18V dc
Remote Antenna Powering	Switchable dc T-bias powering, 12Vdc @ 250mA max, regulated for active antenna powering, short circuit protected
Hirose dc output	Unregulated incoming volts, switched, individually fused, and protected against reverse polarity
Total Current Distribution	3A (max.)

Outer Case
Dimensions	163x67x36mm (LxWxH)
Weight	380g
Supplied RF Link Cables	12 x SMA-RA to SMA-RA - 40cm 2 x BNC-RA to BNC-S Antenna extension cables - 50cm

AD226-MB (MULTI-BAND) Frequency Table
Line No	Freq Range	Bandwidth
1	470-608MHz	138
2	470-663MHz	193
3	470-698MHz	228
4	510-608MHz	98
5	510-663MHz	153
6	510-698MHz	188
7	550-608MHz	58
8	550-663MHz	113
9	550-698MHz	148
10	470-558MHz	88
11	470-570MHz	100
12	500-600MHz	100
13	510-630MHz	120
14	550-640MHz	90
15	550-654MHz	104
16	566-718MHz	152
17	550-815MHz	265
18	536-832MHz	296
19	486-760MHz	274
20	588-810MHz	222
